Why Radiant Heat and Tile Are Perfect Together

Tile is the ideal flooring material for radiant heating because of its excellent thermal conductivity. Unlike carpet or hardwood that insulate against heat transfer, porcelain and ceramic tiles absorb heat from the radiant system and radiate it evenly throughout the room. According to the Tile Council of North America (TCNA), tile flooring transfers radiant heat up to 50% more efficiently than other flooring materials.

At Superior Tile Contracting, we specialize in radiant heat tile installations across Metro Vancouver. With 14+ years of experience, we've perfected the process of integrating heating systems with tile for maximum comfort and efficiency.

Electric vs Hydronic: Which System for Your Home?

Electric Radiant Heating (Best for Single Rooms)

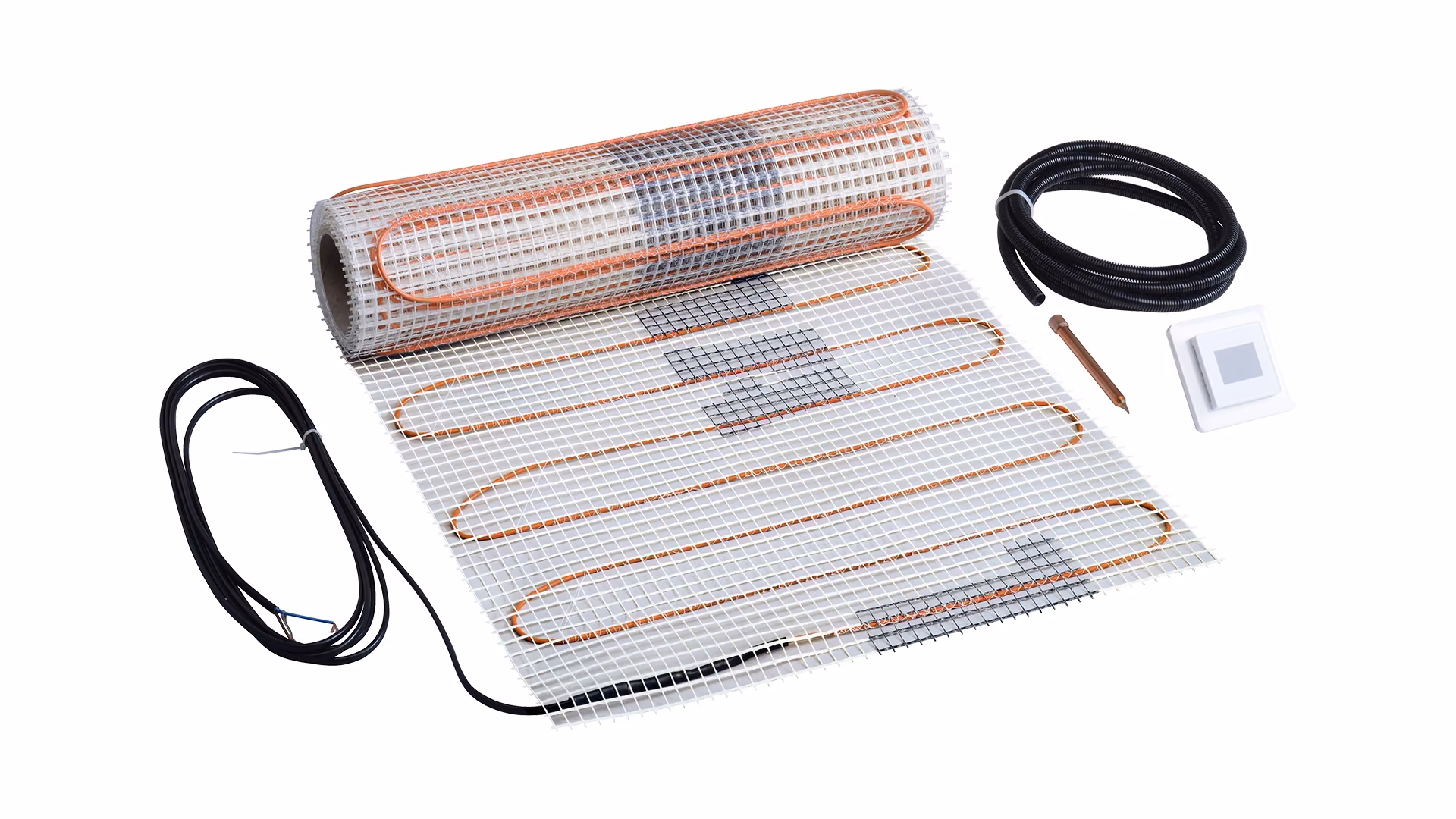

Electric radiant heating uses thin heating cables or mats installed directly beneath the tile. This is the most popular choice for Vancouver homeowners adding heated floors to bathrooms, ensuites, and kitchens.

Lower installation cost: $12–$20/sq ft including tile
Adds minimal height to the floor (only 3–5mm)
Perfect for renovations — no structural modifications needed
Individual room thermostats with programmable timers

Hydronic Radiant Heating (Best for Whole-House)

Hydronic systems circulate heated water through PEX tubing embedded in the floor. While more complex to install, they're more energy-efficient for larger areas and can connect to high-efficiency boilers, heat pumps, or even solar thermal systems.

More economical for whole-house heating
Lower operating costs ($15–$25/sq ft installed)
Compatible with heat pumps common in BC new construction
NRCan estimates 25–35% energy savings vs forced-air heating

Radiant Floor Heating Cost Breakdown (Vancouver 2026)

Component	Electric	Hydronic
Heating system	$6–$10/sq ft	$8–$14/sq ft
Tile + installation	$8–$15/sq ft	$8–$15/sq ft
Thermostat	$150–$350	$200–$500
Electrical/plumbing	$200–$500	$2,000–$5,000
Total (bathroom ~60 sf)	$1,200–$1,800	$3,000–$5,500
Total (whole floor ~800 sf)	$11,500–$20,500	$15,000–$28,000

Best Tiles for Radiant Floor Heating

Not all tiles perform equally over radiant heat. Here are the best choices based on thermal conductivity and durability:

Porcelain tile (top choice): Best thermal conductivity, extremely durable, available in any style
Ceramic tile: Good performance at a lower price point, best for bathrooms
Natural stone (marble/slate): Excellent heat retention, premium look, requires sealing
Large format tiles: Fewer grout lines mean more even heat distribution

Pro Tip from Our Installers

Use a flexible thin-set mortar (modified or polymer-modified) when installing tile over radiant heat. This accommodates the thermal expansion and contraction that occurs with temperature changes, preventing cracked tiles and grout. We use Mapei Kerabond T/Keralastic system for all our radiant heat installations.

The Installation Process

Our typical radiant heat tile installation in Vancouver follows these steps:

Subfloor preparation: We ensure the subfloor is level, clean, and structurally sound. Any floor levelling is done at this stage.
Heating system layout: Electric mats or hydronic tubing are carefully placed according to the room's heating plan, avoiding areas under permanent fixtures.
System testing: We test the heating system before covering it with tile — this is critical and cannot be skipped.
Self-levelling compound: A thin layer of self-levelling compound encapsulates the heating elements and creates a perfectly flat surface.
Tile installation: Using flexible thin-set, we install the tile with proper expansion gaps at all perimeters.
Grouting and curing: After the thin-set cures (24–48 hours), we grout and seal.
System activation: The heating system is gradually brought up to temperature over 7–14 days to prevent thermal shock.

Energy Costs in Vancouver (BC Hydro Rates)

One of the biggest advantages of radiant floor heating in BC is our relatively low electricity rates. At current BC Hydro rates (Step 1: $0.0966/kWh, Step 2: $0.1462/kWh), operating costs are very reasonable:

Bathroom (60 sq ft): $15–$25/month during heating season
Kitchen (120 sq ft): $25–$45/month during heating season
Whole floor (800 sq ft): $80–$150/month during heating season

Using programmable thermostats to heat floors only when needed can reduce these costs by 30–40%. Vancouver's mild winters (October–March) mean shorter heating seasons compared to the rest of Canada.

Popular Rooms for Radiant Heat in Vancouver Homes

The most popular rooms for radiant heated tile floors among our Vancouver clients include bathrooms and ensuites (90% of our radiant heat projects), kitchens and breakfast nooks, mudrooms and entryways (especially popular in rainy Vancouver), and basement living spaces. Each of these areas benefits from the moisture resistance of tile combined with the comfort of radiant warmth.

Frequently Asked Questions

How much does radiant floor heating under tile cost in Vancouver?

Electric radiant floor heating under tile costs $12–$20 per square foot installed in Vancouver, including both the heating system and tile installation. A typical bathroom (50–80 sq ft) costs $600–$1,600 for the heating system alone, plus tile installation. Hydronic systems cost $15–$25 per square foot but are more economical for whole-house installations.

Is radiant floor heating worth it in Vancouver?

Yes, radiant floor heating is especially worth it in Vancouver's mild but damp climate. It provides even, comfortable warmth without dry air from forced-air systems. BC Hydro rates make electric radiant heating affordable, typically adding $20–$50/month for a bathroom. It also increases resale value by $5,000–$15,000.

What is the best tile for radiant floor heating?

Porcelain tile is the best choice for radiant floor heating due to its excellent thermal conductivity, durability, and low thermal expansion. Natural stone also works well. Avoid glass mosaic tiles and very thick tiles (over 15mm) as they can reduce heating efficiency.
