What Is Radiant Floor Heating?

Radiant floor heating is a system that warms your home from the ground up by installing heating elements beneath your flooring. Instead of blowing hot air like forced-air systems, radiant heating provides consistent, comfortable warmth that rises naturally from the floor. It's the ultimate luxury upgrade for tile installations in Vancouver homes.

Why Choose Radiant Heating for Tile Floors?

Superior comfort: Eliminates cold tile sensation, especially in bathrooms
Energy efficient: 25-40% more efficient than forced-air heating
Even heat distribution: No cold spots or temperature fluctuations
Silent operation: No noisy fans or ductwork
Improved air quality: Doesn't circulate dust and allergens
Increased home value: Premium feature that appeals to buyers
Perfect with tile: Tile conducts and retains heat beautifully

Types of Radiant Floor Heating Systems

1. Electric Radiant Heating (Most Common for Tile)

Electric systems use heating cables or mats installed directly under tile flooring. This is the most popular choice for Vancouver renovations.

Electric Heating Cables

Installation: Flexible cables laid in custom patterns
Best for: Irregularly shaped rooms, alcoves, around fixtures
Coverage: Can heat entire floor or specific zones
Cost: $10-15 per square foot installed

Electric Heating Mats

Installation: Pre-spaced cables attached to mesh mats
Best for: Rectangular rooms, faster installation
Coverage: Standard width rolls (30", 36")
Cost: $12-18 per square foot installed

Advantages of Electric Systems

Lower upfront installation costs
Easier to install during renovations
No maintenance requirements
Quick warm-up time (30-60 minutes)
Precise room-by-room control
Compatible with all tile types

Disadvantages of Electric Systems

Higher operating costs than hydronic
Not ideal for whole-home heating in large spaces
Dependent on electricity rates

2. Hydronic Radiant Heating

Hydronic systems circulate heated water through tubes installed beneath the floor. Best for new construction or major renovations.

Installation: PEX tubing connected to a boiler or water heater
Best for: Whole-home heating, new construction
Coverage: Can heat entire home efficiently
Cost: $15-30+ per square foot installed

Advantages of Hydronic Systems

Most energy-efficient for large areas
Lower long-term operating costs
Can use various heat sources (gas, oil, solar)
Excellent for whole-home heating

Disadvantages of Hydronic Systems

Higher upfront installation costs
Requires boiler and pumps
More complex installation
Longer warm-up time (2-3 hours)
Maintenance required for boiler system

Best Applications for Radiant Heating

Ideal Rooms for Electric Radiant Heating

Bathrooms: Most popular application - luxury and comfort
Master ensuites: Spa-like experience stepping out of shower
Kitchen floors: Comfort while cooking and doing dishes
Mudrooms: Helps dry wet boots and shoes in Vancouver winters
Basement floors: Eliminates cold concrete sensation

Ideal Rooms for Hydronic Systems

Whole-home heating: Open-concept main floors
Large kitchens: Combined with tile installation
Finished basements: Primary heat source
Additions: New construction areas

Installation Process for Electric Radiant Heating

Step 1: Planning and Design

Proper planning ensures optimal performance:

Measure room dimensions accurately
Calculate heated square footage (exclude cabinets, toilets)
Determine electrical requirements and capacity
Choose thermostat location (near door, 5 feet high)
Plan cable/mat layout avoiding fixtures

Step 2: Electrical Work

Licensed electrician must:

Install dedicated circuit (typically 15-20 amp)
Run wiring from panel to thermostat location
Install GFCI protection as required by code
Test electrical system before proceeding

Step 3: Substrate Preparation

The subfloor must be:

Clean, dry, and level
Free of debris and sharp objects
Structurally sound
Properly primed if required

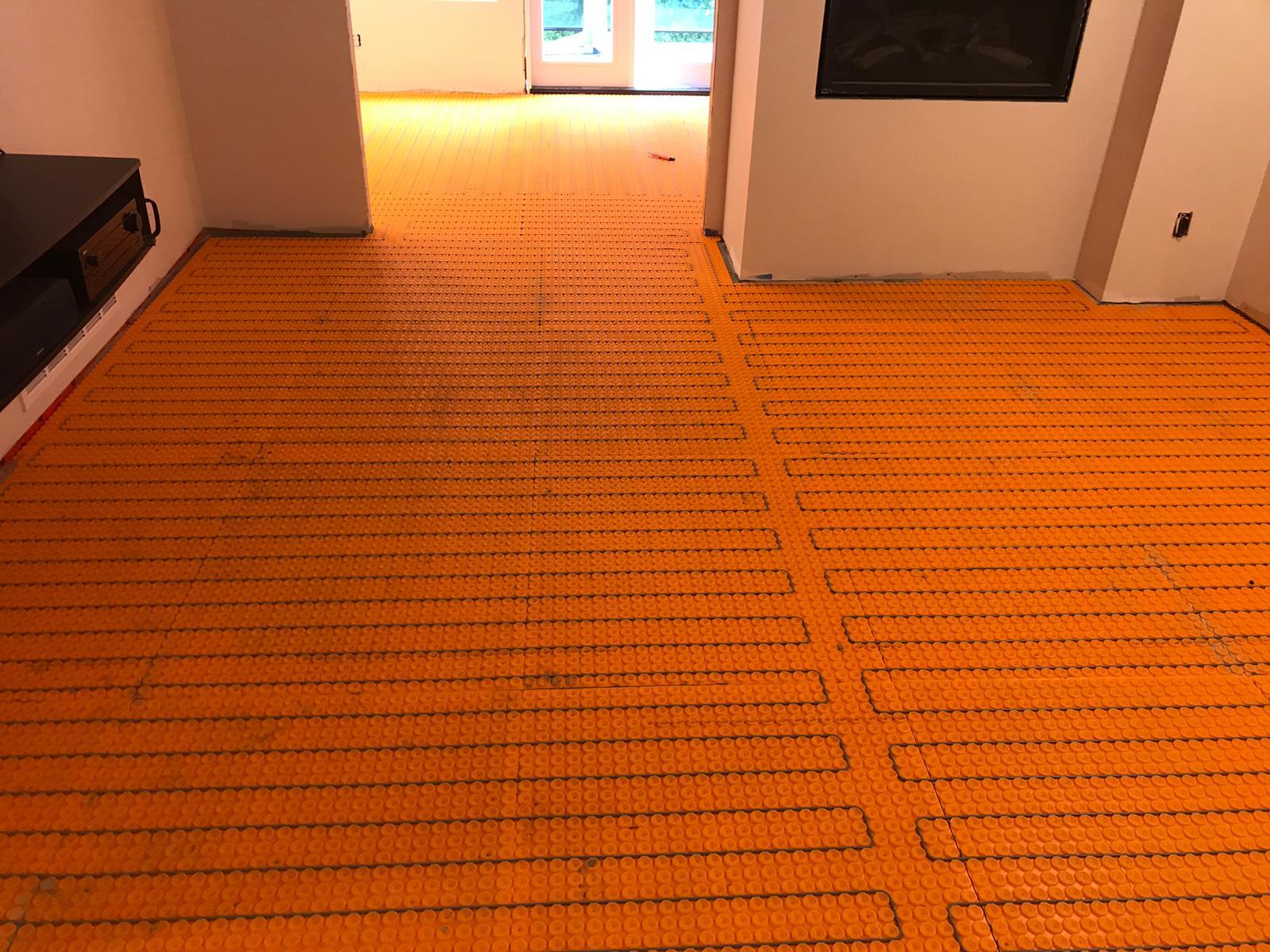

Step 4: Heating System Installation

Professional installation includes:

Test heating cables before installation (essential!)
Install insulation board if recommended
Lay heating mats or cables per manufacturer specs
Secure with appropriate adhesive or staples
Route cold leads to thermostat location
Test system resistance again after installation

Step 5: Tile Installation

Special care required when tiling over heating systems:

Use modified thin-set mortar (not self-leveling)
Apply thin-set carefully to avoid damaging cables
Ensure full coverage to eliminate air pockets
Use tile spacers for consistent joints
Allow extended curing time before activating heat
Test system one final time before grouting

Step 6: Thermostat Installation and Programming

Final setup ensures optimal performance:

Install programmable thermostat with floor sensor
Program heating schedules for efficiency
Set maximum temperature (typically 80-85°F)
Test system operation
Wait 28 days after tile installation before full use

Cost Analysis for Vancouver Homes

Electric Radiant Heating Costs

Material Costs:

Heating mats: $8-12 per square foot
Programmable thermostat: $100-300
Floor sensor: $30-60
Additional electrical work: $200-500

Installation Costs:

Professional installation: $2-5 per square foot
Combined with tile installation: Often included in quote

Example: 50 sq ft Bathroom

Materials: $400-600
Installation: $100-250
Electrical: $200-300
Total: $700-1,150

Operating Costs

Based on BC Hydro rates (approximately $0.14 per kWh):

Small bathroom (50 sq ft): $20-40 per month
Medium bathroom (100 sq ft): $35-70 per month
Kitchen (200 sq ft): $60-120 per month

Note: Costs vary based on usage patterns, insulation, and temperature settings. Programmable thermostats can reduce costs by 20-30%.

Hydronic System Costs

Material and Installation:

PEX tubing and manifolds: $5-8 per square foot
Boiler system: $3,000-8,000
Installation labor: $10-22 per square foot
Total for 1,500 sq ft: $25,000-50,000

Operating costs are typically 30-50% lower than electric systems for whole-home heating.

Energy Efficiency Tips

Maximize Efficiency with Smart Controls

Programmable thermostats: Heat rooms when occupied
Smart home integration: Control remotely via smartphone
Zone control: Heat different rooms independently
Occupancy sensors: Automatic adjustments based on presence

Installation Best Practices

Insulation: Install insulation board under heating system
Reflective barriers: Direct heat upward, not into subfloor
Proper coverage: Heat 80-90% of floor area
Tile selection: Darker tiles retain heat longer

Usage Strategies

Set temperatures 2-3°F lower than forced-air equivalent
Use setback temperatures when away (10-15°F reduction)
Take advantage of BC Hydro's time-of-use rates
Combine with passive solar gain strategies

Compatibility with Tile Flooring

Best Tile Types for Radiant Heating

All tiles work with radiant heating, but some perform better:

Porcelain and ceramic: Excellent heat conductivity and retention
Natural stone: Superior thermal mass stores heat longer
Marble and slate: Luxurious feel with great heat transfer

Tile Installation Considerations

Use flexible thin-set to accommodate thermal expansion
Include crack isolation membranes for large areas
Use slightly wider grout joints (1/8" minimum)
Consider expansion joints in large rooms (over 400 sq ft)

Maintenance and Troubleshooting

Electric System Maintenance

Electric radiant systems are virtually maintenance-free:

No annual service required
Test thermostat operation annually
Clean floor sensor probe as needed
Keep warranty documentation accessible

Common Issues and Solutions

Floor not heating: Check circuit breaker, thermostat settings, and floor sensor
Uneven heating: Verify proper cable spacing and insulation
Slow warm-up: Normal behavior; increase lead time or adjust schedule
High energy bills: Review programming and reduce target temperatures

Warranty Coverage

Most quality systems include:

25-year manufacturer warranty on heating elements
1-2 year warranty on thermostats
Installation warranty from contractor
Proof of professional installation may be required

Is Radiant Heating Right for Your Vancouver Home?

You Should Consider Radiant Heating If:

You're installing or replacing tile flooring
You want luxury comfort in bathrooms
You prefer efficient, silent heating
You have allergies or asthma (no air circulation)
You're doing a major renovation or new construction
You want to increase home value

Electric Systems Make Sense When:

Renovating bathrooms, kitchens, or mudrooms
Adding supplemental heating to specific rooms
Working with existing flooring structure
Budget is moderate ($700-2,000 per room)

Hydronic Systems Make Sense When:

Building new home or major addition
Replacing entire home heating system
Heating large areas (1,500+ sq ft)
Long-term efficiency is priority
Budget allows for higher upfront investment

Professional Installation vs. DIY

Why Professional Installation Matters

While some experienced DIYers attempt radiant heating installation, professional installation offers significant advantages:

Expertise: Proper layout prevents cold spots and overheating
Warranty: Most manufacturers require professional installation
Electrical safety: Licensed electrician ensures code compliance
Integration: Seamless coordination with tile installation
Testing: Professional verification at each stage
Troubleshooting: Quick resolution if issues arise

At Superior Tile Contracting, we coordinate the entire process: from electrical work to heating system installation to professional tile installation, ensuring everything works perfectly together.

Conclusion

In-floor radiant heating transforms tile floors from functional to luxurious, making them warm and inviting year-round. For Vancouver homeowners planning tile installations, adding radiant heating is an investment in comfort, efficiency, and home value that pays dividends for decades.

Ready to enjoy warm tile floors in your home? Contact us for expert advice or request a free quote for your radiant heating and tile installation project!
